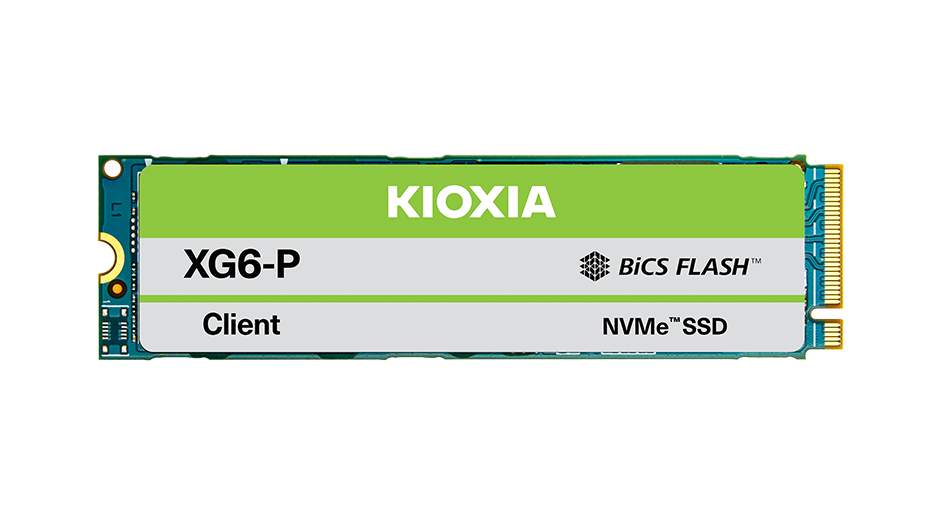

KIOXIA XG6-P Series (M.2)
Client NVMe™ SSD
Leveraging KIOXIA 96-layer BiCS FLASH™ 3D TLC (3-bit-per-cell) flash memory, KIOXIA XG6-P Series SSDs provide high storage capacity, while maintaining the promise of ultra-thin, high-speed storage with exceptional power efficiency.
It is best suited for video/CG contents production requiring high-speed access to high-cap data, AI/machine learning applications, workstations, and high-end PCs.
The XG6-P Series achieve 2,920 MB/s of sequential write performance, which is 32.7 % improvement vs our previous generation premium model KIOXIA XG5-P Series.
The 2,048 GB XG6-P SSD is available in a single-sided M.2 2280 (22 x 80mm) form factor and offers security options including TCG Pyrite Version 1.0 support for Non-SED (Self-Encrypting Drive) configurations and TCG Opal Version 2.01 support for SED.
Documents
Key Features
- KIOXIA 96-Layer BiCS FLASH™
- PCIe® Gen3 x4, NVMe™
- Capacity: 2,048 GB
- M.2 2280 Single-sided
- TCG Opal 2.01 Optional for SED
Key Applications
- Workstation PCs
- High-End PCs
- Video/CG contents production
- AI/Machine learning
Specifications
* 表格可以水平滚动。
Base Model Number | KXG60PNV2T04 |
---|---|
SED Model Number | KXG6APNV2T04 |
Capacity | 2,048 GB |
Basic Specifications | |
Form Factor | M.2 2280-S2 Single-sided |
lnterface | PCIe® 3.0, NVMe™ 1.3a |
Maximum Interface Speed | 32 GT/s (PCIe® Gen3 x4) |
Flash Memory Type | BiCS FLASH™ TLC |
Performance (Up to) | |
Sequential Read | 3,180 MB/s |
Sequential Write | 2,920 MB/s |
Random Read | 355K IOPS |
Random Write | 365K IOPS |
Power Requirements | |
Supply Voltage | 3.3 V ± 5 % |
Power Consumption (Active) | 4.9 W typ. |
Power Consumption (L1.2 mode) | 3.0 mW typ. |
Reliability | |
MTTF | 1,500,000 hours |
TBW | 600 |
Dimensions | |
Thickness | 2.23 mm Max |
Width | 22.0 mm ± 0.15 mm |
Length | 80.0 mm ± 0.15 mm |
Weight | 7.3 g Max |
Environmental | |
Temperature (Operating) | 0 ℃ to 95 ℃ (Controller Temperature) |
Temperature (Operating) | 0 ℃ to 85 ℃ (Other Components Temperature) |
Temperature (Non-operating) | -40 ℃ to 85 ℃ |
Humidity (Operating) | 0 % to 90 % R.H. |
Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 Hz to 2,000 Hz ) |
Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) |
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- TBW: Terabytes Written. The number of terabytes that may be written to the SSD for the specified lifetime.
- Read and write speed, tested on the state of "SLC cache=ON", may vary depending on the host device, read and write conditions, and file size.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
